Thiết bị kiểm tra đường ghép seam (seam monitor)

Model SeamSight – C

Hãng sản xuất: CANNEED – HongKong (China)

-Phương pháp: các mối ghép được đo bằng camera và được số hóa bằng máy vi tính.

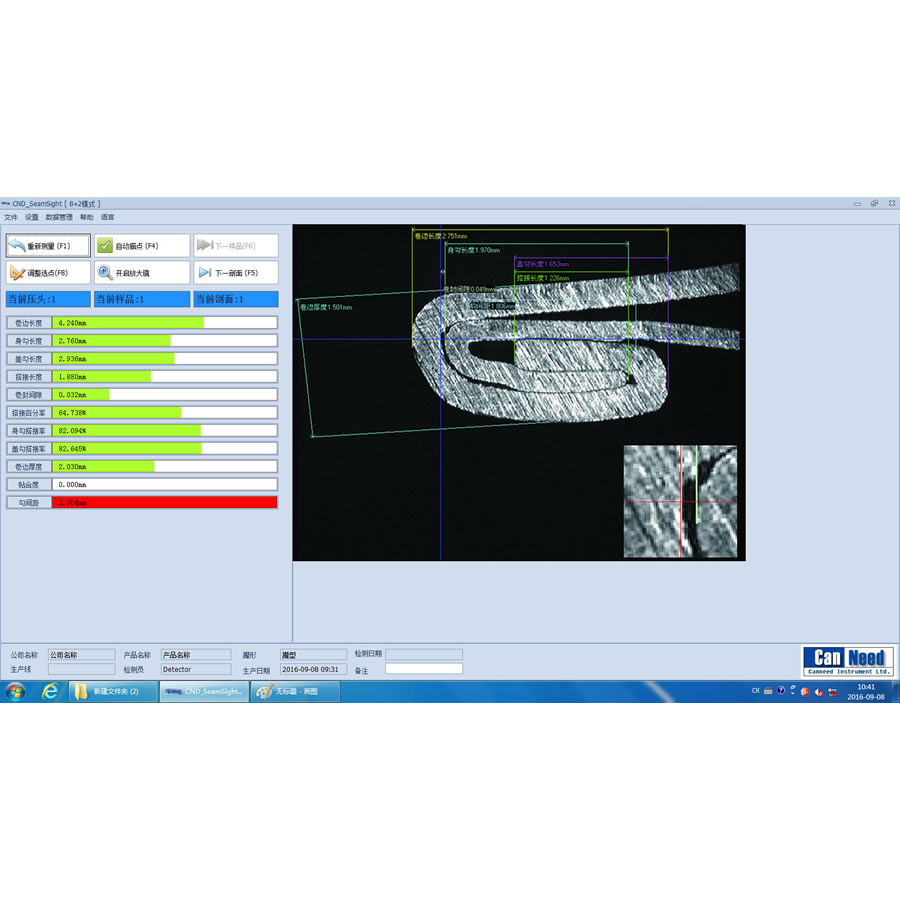

-Máy sử dụng phần mềm hiển thị được hình ảnh mối ghép. Hình ảnh có thể in bằng máy in hoặc lưu trữ trên máy vi tính.

-Xuất kết quả đo sang Excell.

-Cổng giao tiếp: RS232

-Độ phân giải          0.001 mm

-Độ chính xác:       ±0.005 mm

-Thời gian đo nhanh.

-Nguồn điện: 230V/ 50Hz

Cung cấp bao gồm:

+Máy chính Model SeamSight – C

+Phần mềm Seam Sight

+Mẫu chuẩn: Calibration piece

+Tài liệu hướng dẫn sử dụng

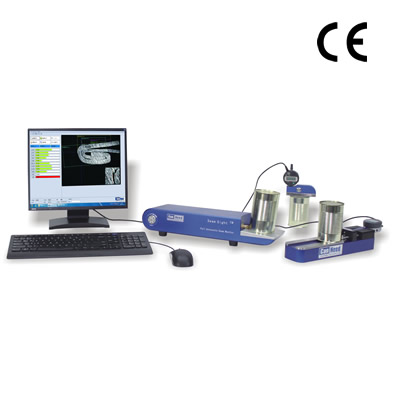

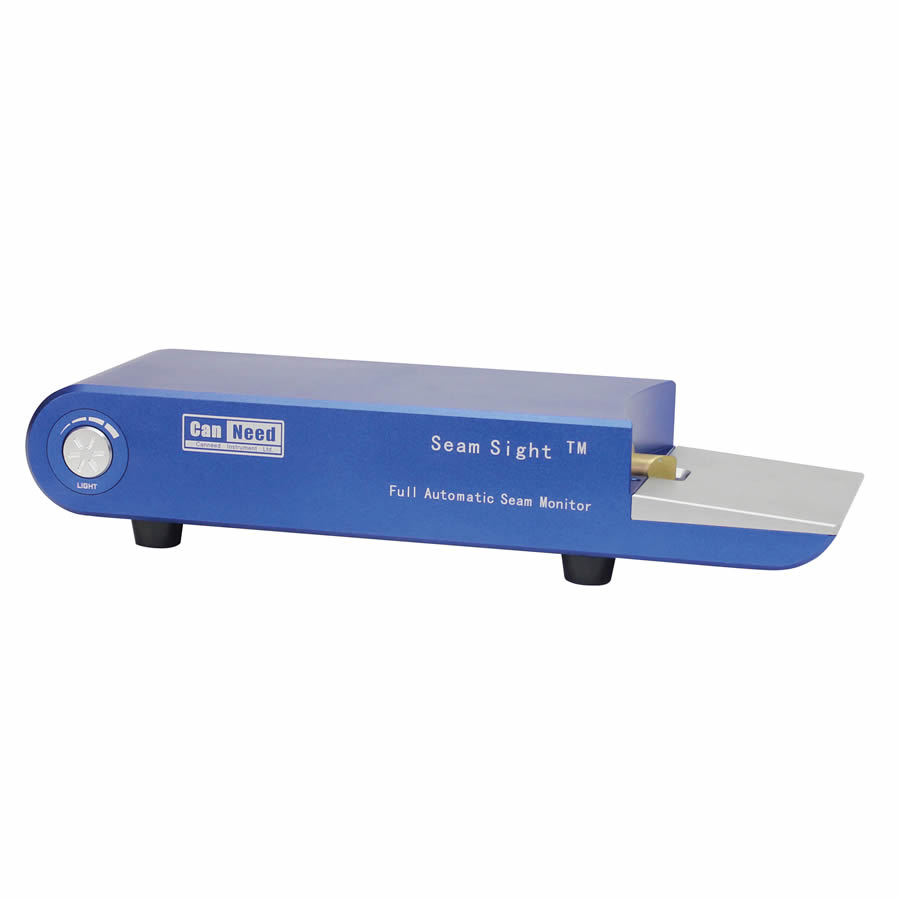

SeamSight-C SeamSight-C Full Automatic Seam Monitor

Applications

With CanNeed Automatic Seam Sight® Monitor, press only one key “Auto Measure” to do the line positioning automatically and the measurement to be finished within 1 second! It can measure the seam dimension automatically, efficiently, simply and also avoid operator mistake. Use the CanNeed SPC data collection system (CSG-200 countersink gauge & STG-200D seam thickness gauge), the actual seam thickness, actual countersink, etc., can be transferred to the computer automatically. Such data can generate a report together with other data, improving the process.

Advantages

● Fully automatic line positioning (Auto measure), measurement finished within 1 second!

● Equip with Golden LensTM video capture device which interference-free of external light source and ensured the high image definition

● Power supply from USB of computer, no need extra power supply.

● Able to measure tightness

● Magnification factor: 60 X    Line positioning magnification factor: 180 X

● Report format can be customized, flexible for different report styles of different companies

● Users can review or re-measure the saved projects at any time

● Graph chart statistic function, automatically analyze and compare the measurement results

Technical Parameter

● Power supply: USB port of PC
● Serial interface: RS 232 C
● Resolution: 0.001mm
● Accuracy: 0.005 mm
● Cans dia. : 52-200 mm, customized made up to 300
● Dimensions: L400 x W200 x H150 mm
